Ris-I High-Speed Road Inspection System Mobile Road Survey Lidar Scanner
US$46,500.00
1 Set (MOQ)
Port: Qingdao, China
Production Capacity: 20/Month
Payment Terms: L/C, T/T, Western Union, Paypal
Inquire now
Add To Inquiry Basket

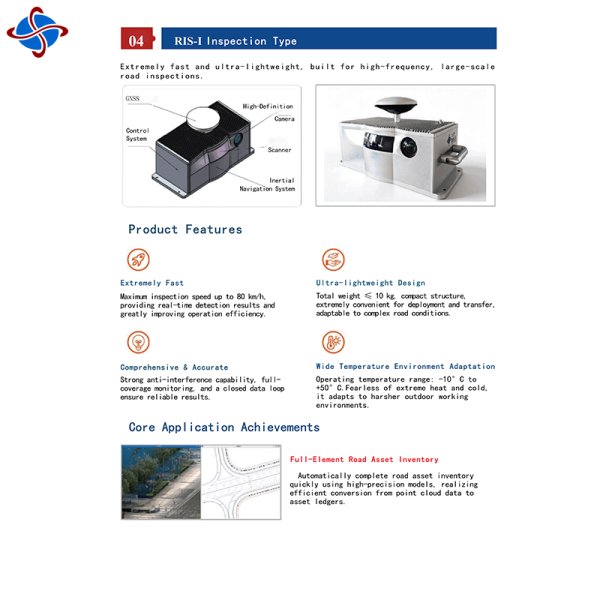

RIS-I Mobile Road Inspection System

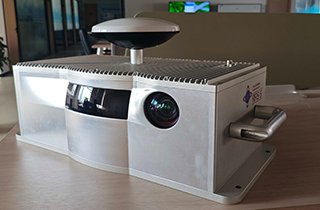

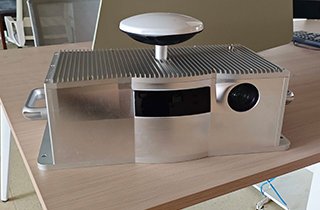

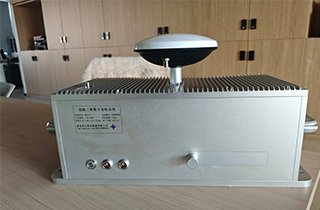

·The RIS-I Mobile Road Inspection System is an advanced, ultra-lightweight solution designed for high-frequency and large-scale road inspections. It integrates multiple sensors including GNSS, high-definition cameras, LiDAR scanners, and an inertial navigation system（INS）, enabling precise and efficient road data collection.

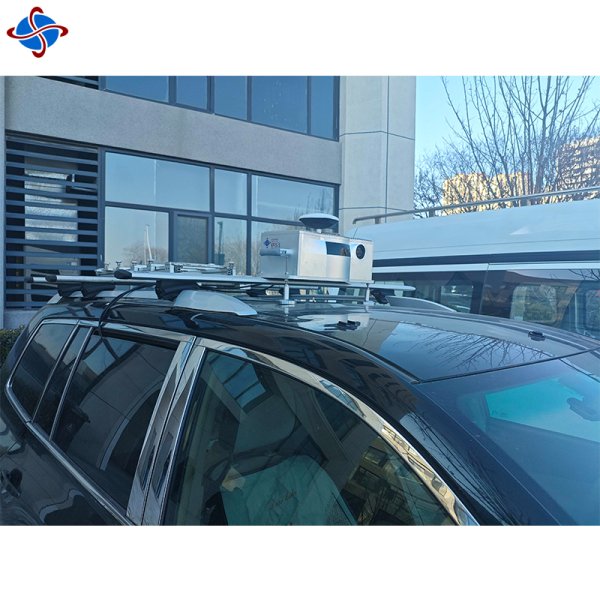

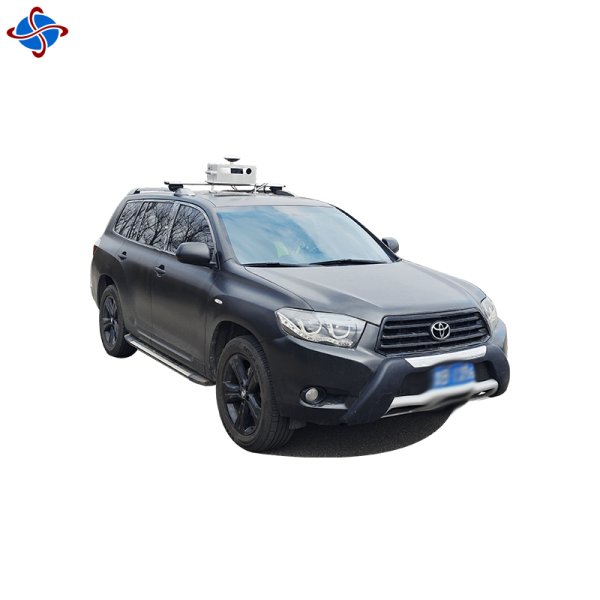

·With a maximum inspection speed of up to 80 km/h, RIS-I significantly improves operational efficiency while ensuring high-accuracy data acquisition. The compact design (less than 10 kg) allows for quick deployment and flexible use across different vehicles and environments.
·The system supports real-time data processing and seamless conversion of point cloud data into structured road asset information, making it ideal for smart transportation, infrastructure management, and digital road applications.
High-Speed Inspection up to 80 km/h
Real-time data collection without interrupting traffic flow
High Accuracy & Full Coverage
Reliable road asset detection with closed-loop data processing
Multi-Sensor Integration
GNSS + HD Camera + LiDAR Scanner + INS for high-precision data
·Highway & Urban Road Inspection
·Road Asset Inventory Management
·Smart City Infrastructure Monitoring
·Pavement Condition Assessment
·Digital Road & GIS Mapping
·Transportation Engineering Projects
Still searching for your fit? Discover the right hardware for your needs
RIS-I Fast Model | |
Specification Item | Specification Parameter |
System Specifications | |
| Inspection Speed | 0~80km/h |
| Positioning Accuracy | Better than 10cm |
| Inspection Accuracy | Crack Detection Resolution2~3mm |
| Equipment Weight | 10kg |
| Operating Temperature | 0~50 |
| Protection Level | IP54 |
LIDAR | |
| Laser Safety Class | Class 1 (Eye-safe) |
| Ranging Range | 0.5~260m |
| Point Frequency | Single Echo: 1.536M points/sec, Dual Echo: 3.072M points/sec |
| Ranging Accuracy | 3cm/5cm |
| Field of View (FOV) | 120°×25.4° |
| Angular Resolution | 0.10° or 0.20° |
| Scanning Speed | 10Hz, 20Hz |
| Front-view Camera | |
| Resolution | 4096×3000 (12MP) |
| Shutter Type | Global Shutter |
| Frame Rate | 9 FPS |
Position & Attitude System | |
| Satellite System | BeiDou & GPS & GLONASS |
| Integrated Navigation Level | MEMS Integrated Navigation |
| Post-processing Positioning Accuracy | Horizontal: 0.010m, Vertical: 0.020m |
| Post-processing Attitude Accuracy | Roll/Pitch: 0.009°, Heading: 0.040° |
Position & Attitude System | |
| Satellite System | BeiDou & GPS & GLONASS |
| Integrated Navigation Level | MEMS Integrated Navigation |
| Post-processing Positioning Accuracy | Horizontal: 0.010m, Vertical: 0.020m |
| Post-processing Attitude Accuracy | Roll/Pitch: 0.009°, Heading: 0.040° |
Software Capabilities

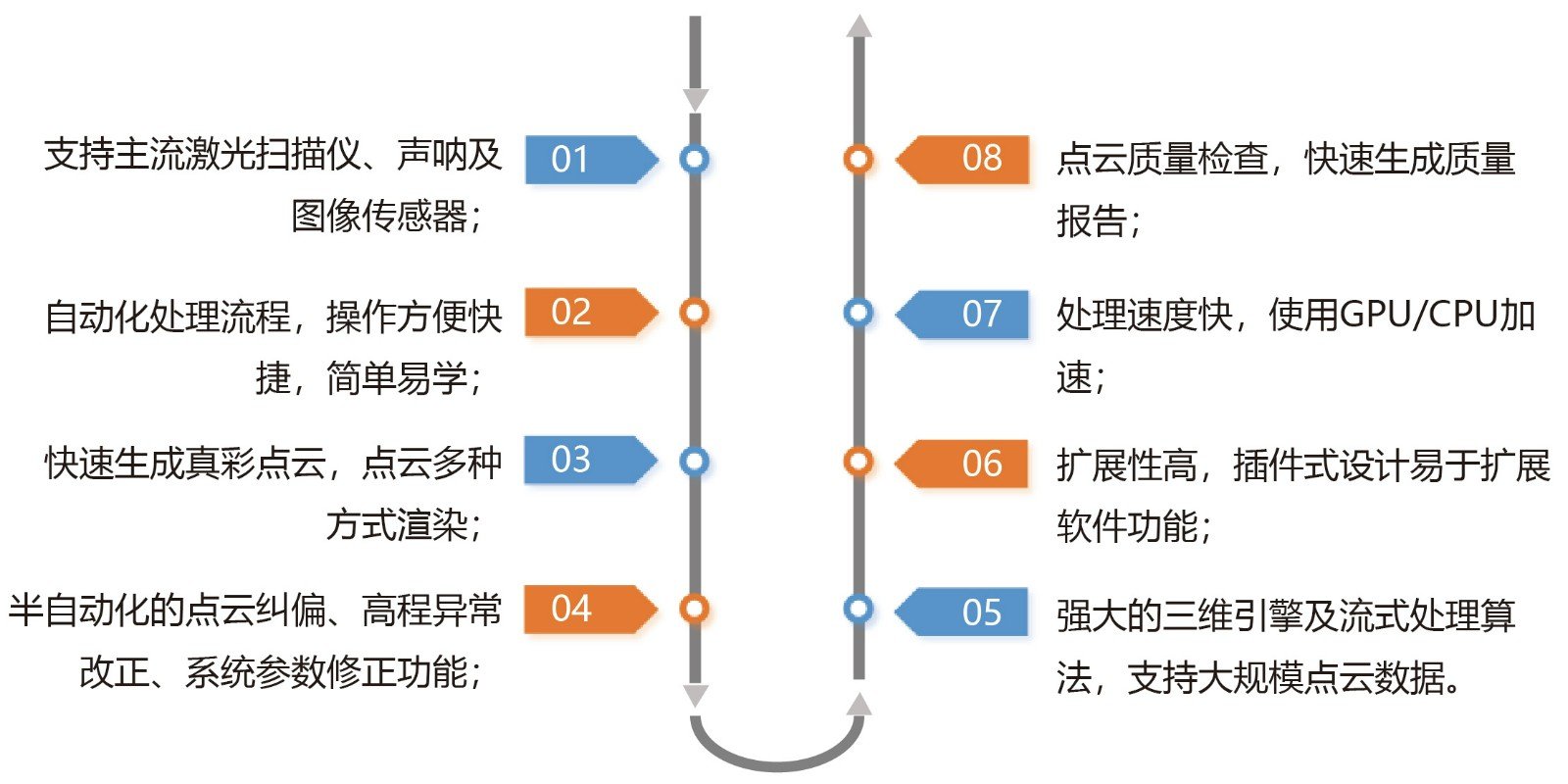

·VsursProcess Data Preprocessing Software is a professional mobile surveying data processing software that supports data parsing from mainstream LiDAR, sonar and image sensors.

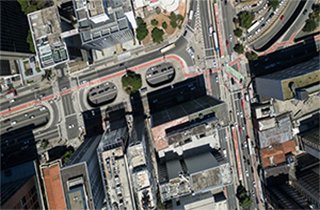

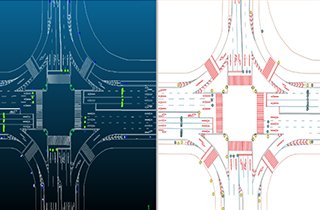

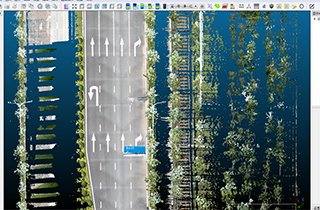

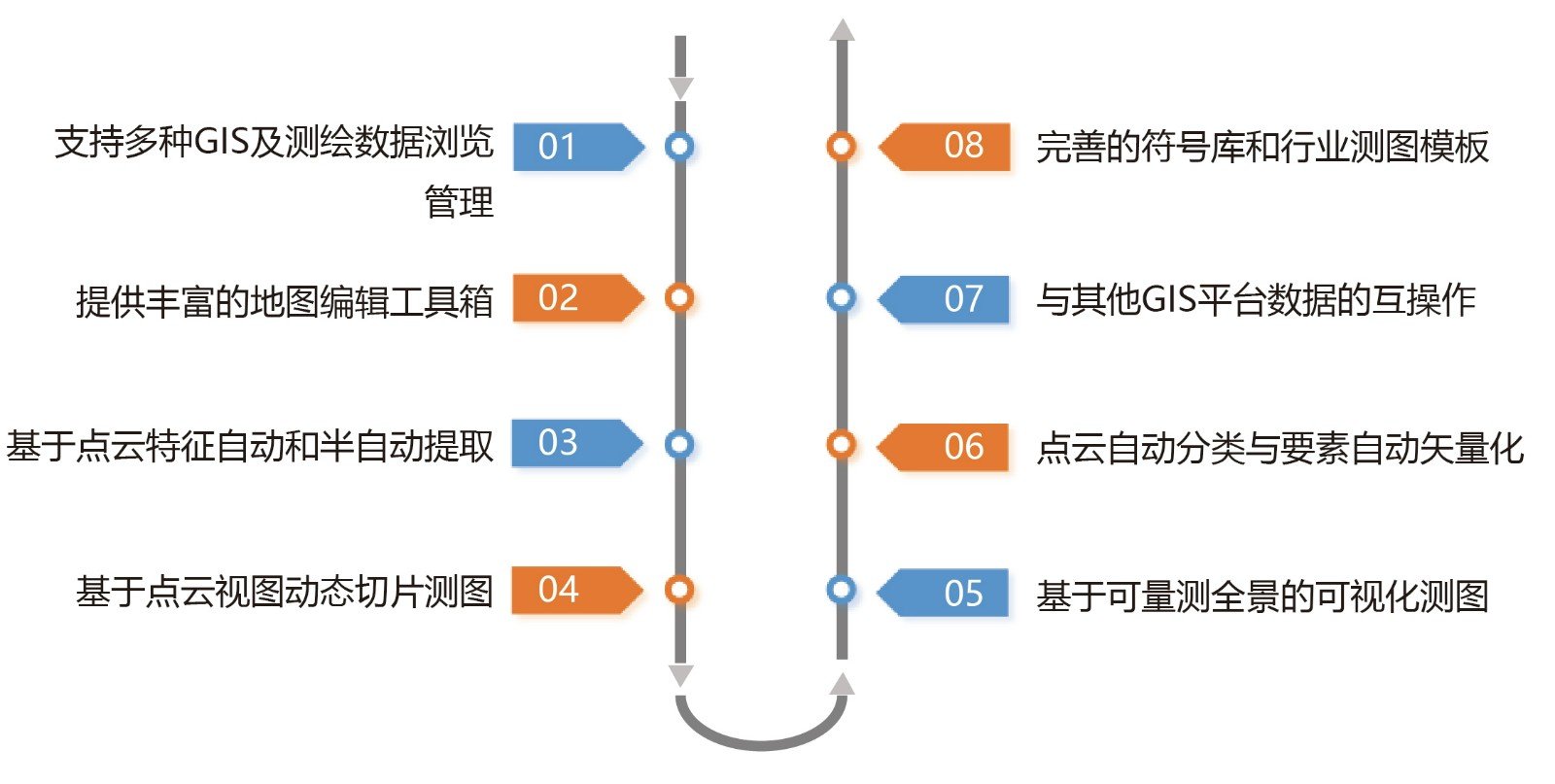

·VsurMap is a professional 3D laser point cloud data mapping software that integrates 2D and 3D integrated geographic information collection, editing, data management and industry applications.
Qingdao Xiushan Supersurs Co., Ltd. established in July 2011, is a high-tech enterprise dedicated to the R&D of multi-sensor intelligent equipment. Recognized as a "Specialized, Refined, and Innovative" enterprise by the city of Qingdao, the company also hosts an Academician and Expert Workstation. It is committed to the development of equipment for the rapid acquisition of 3D geographic information, as well as to the field of 3D geographic data mining. The company's core technology is rooted in the accumulated achievements of close-range 3D measurement techniques. As a pioneer in China's mobile mapping sector, and guided by its corporate philosophy of "Intelligent Innovation," the company has made it its mission to deliver "high-caliber, high-precision, and cutting-edge" products and services. It aims to provide core equipment and engineering software for the rapid acquisition of 2D geographic data to sectors such as natural resources, transportation, marine affairs, and mining; furthermore, it offers 3D laser reality models and comprehensive engineering solutions for initiatives involving Digital Cities, Digital Transportation, Digital Oceans, and Digital Energy.
FAQ
What is the minimum order quantity (MOQ)?
Our MOQ is 1 set for this product is one set.
Can you provide OEM/ODM service?
Yes, we support OEM/ODM services including custom logo, software interface, and packaging design. Please share your requirements.
What is the lead time?
For standard products, lead time is 10-15 working days. For bulk orders or customized solutions, it typically takes negotiation is usually required.
Do you provide training?
Yes. We provide online video tutorials, user manuals, and remote support. On-site training can be arranged upon request.
What is your warranty policy?
We offer a 12-month warranty for all hardware. The warranty covers manufacturing defects but does not cover damage from misuse or unauthorized modifications.
What shipping methods do you accept?
We ship via DHL, FedEx, UPS for express delivery, or by sea/air freight for bulk orders. Shipping cost and time depend on destination.
What are the payment terms?
We accept T/T bank transfer, PayPal, Western Union, and MIC Trade Assurance.
Do you have local distributors or agents?
We have agents within China, and we are currently seeking partners abroad. You are welcome to contact us.
