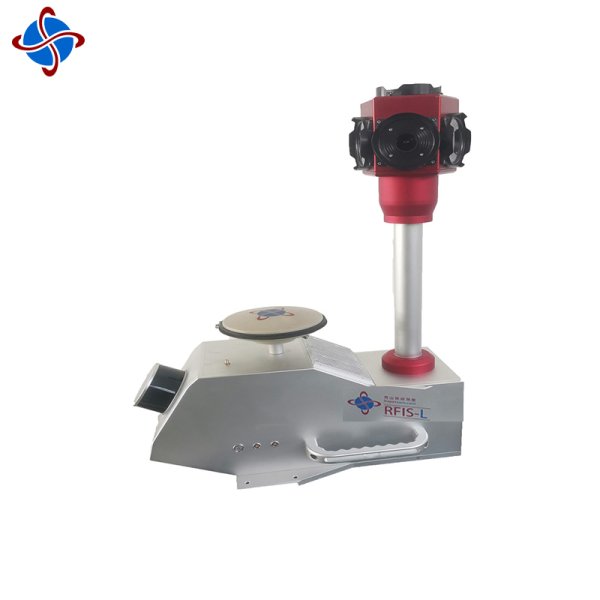

RIS-L Lightweight Road Inspection System
·The RIS-L Lightweight Mobile Road Survey System is designed for flexible and rapid road inspection applications. Featuring an ultra-lightweight structure （approximately 15 kg）, the system can be easily mounted on various vehicles and quickly deployed in different working environments.
·Unlike traditional systems, RIS-L supports positioning without a base station, making it highly suitable for remote areas, temporary projects, and emergency tasks. The system integrates GNSS, LiDAR scanner, panoramic camera, industrial camera, and an inertial navigation system （INS）, ensuring accurate and comprehensive data collection.
·With an inspection speed of 30-60 km/h and IP54 protection rating, RIS-L provides a reliable and efficient solution for road asset acquisition, pavement condition assessment, and digital road management.

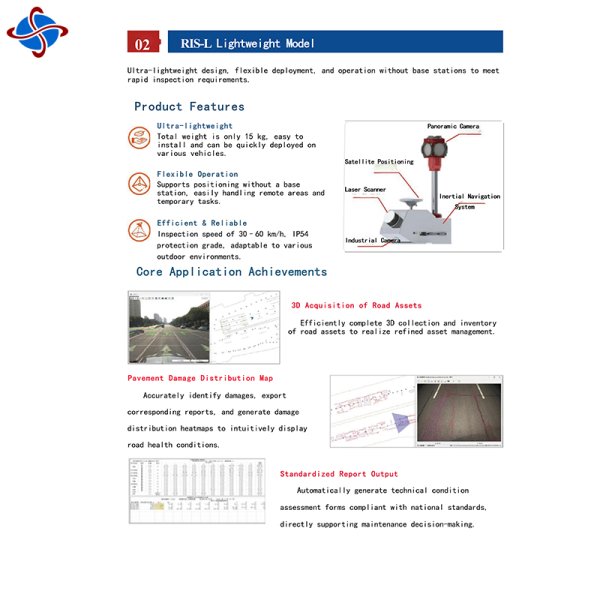

3D Road Asset Acquisition
Efficiently collect and digitize road assets for refined infrastructure management.
Pavement Damage Distribution Mapping
Generate intuitive heatmaps and reports to visualize road condition.
Multi-Sensor Integration
GNSS + LiDAR + Panoramic Camera + Industrial Camera + INS
Asset Documentation
Delivering high levels of detail, the RIS-L supports asset management for transportation and utility networks, contributing to efficient planning and operations.
Infrastructure Measurement
The RIS-L is highly effective at measuring mid-scale road and urban infrastructure, aiding in planning upgrades and maintenance efforts.
Mining Site Surveys
The RIS-L captures data with the range and accuracy needed to survey mining sites, map terrain, optimise resource extraction, and support safety assessments.
Still searching for your fit? Discover the right hardware for your needs
RIS-L Lightweight Model | |
| Specification Item | Specification Parameter |
System Specifications | |
| Inspection Speed | 30~60km/h |
| Positioning Accuracy | Better than 5cm |
| Inspection Accuracy | Crack Detection Resolution1mm, Depth Measurement Accuracy5mm |
| Equipment Weight | 15kg |
| Operating Temperature | 0~50 |
| Protection Level | IP54 |
LIDAR | |
| Laser Safety Class | Class 1 (Eye-safe) |
| Ranging Range | 0~120m |
| Point Frequency | Single Echo: 640k points/sec, Dual Echo: 1.28M points/sec |
| Ranging Accuracy | 5mm/1cm |
| Field of View (FOV) | 360° |
| Angular Resolution | 0.18° |
| Scanning Speed | 5Hz, 10Hz, 20Hz |
Panoramic Camera | |
| Resolution | Mono: 2448×2048, Panoramic: 30MP |
| Shutter Type | Global Shutter |
| Field of View (FOV) | 360° |
| Frame Rate | 30 FPS (JPEG Compressed) |
Rear-view Camera | |
| Resolution | 5120×5120 (25MP) |
| Shutter Type | Global Shutter |
| Frame Rate | 4 FPS |
Position & Attitude System | |
| Satellite System | BeiDou & GPS & GLONASS |
| Integrated Navigation Level | MEMS Integrated Navigation |
| Post-processing Positioning Accuracy | Horizontal: 0.010m, Vertical: 0.020m |
| Post-processing Attitude Accuracy | Roll/Pitch0.005°, Heading0.010° |
Software Capabilities
·VsursProcess Data Preprocessing Software is a professional mobile surveying data processing software that supports data parsing from mainstream LiDAR, sonar and image sensors.
·VsurMap is a professional 3D laser point cloud data mapping software that integrates 2D and 3D integrated geographic information collection, editing, data management and industry applications.
Qingdao Xiushan Supersurs Co., Ltd. established in July 2011, is a high-tech enterprise dedicated to the R&D of multi-sensor intelligent equipment. Recognized as a "Specialized, Refined, and Innovative" enterprise by the city of Qingdao, the company also hosts an Academician and Expert Workstation. It is committed to the development of equipment for the rapid acquisition of 3D geographic information, as well as to the field of 3D geographic data mining. The company's core technology is rooted in the accumulated achievements of close-range 3D measurement techniques. As a pioneer in China's mobile mapping sector, and guided by its corporate philosophy of "Intelligent Innovation," the company has made it its mission to deliver "high-caliber, high-precision, and cutting-edge" products and services. It aims to provide core equipment and engineering software for the rapid acquisition of 2D geographic data to sectors such as natural resources, transportation, marine affairs, and mining; furthermore, it offers 3D laser reality models and comprehensive engineering solutions for initiatives involving Digital Cities, Digital Transportation, Digital Oceans, and Digital Energy.
FAQ
What is the minimum order quantity (MOQ)?
Our MOQ is 1 set for this product is one set.
Can you provide OEM/ODM service?
Yes, we support OEM/ODM services including custom logo, software interface, and packaging design. Please share your requirements.
What is the lead time?
For standard products, lead time is 10-15 working days. For bulk orders or customized solutions, it typically takes negotiation is usually required.
Do you provide training?
Yes. We provide online video tutorials, user manuals, and remote support. On-site training can be arranged upon request.
What is your warranty policy?
We offer a 12-month warranty for all hardware. The warranty covers manufacturing defects but does not cover damage from misuse or unauthorized modifications.
What shipping methods do you accept?
We ship via DHL, FedEx, UPS for express delivery, or by sea/air freight for bulk orders. Shipping cost and time depend on destination.
What are the payment terms?
We accept T/T bank transfer, PayPal, Western Union, and MIC Trade Assurance.
Do you have local distributors or agents?
We have agents within China, and we are currently seeking partners abroad. You are welcome to contact us.
