Ris-L Laser Scanner Surveying and Mapping Mobile Mapping System 3D Lidar
US$123,500.00
1 Set (MOQ)
Port: Qingdao, China
Production Capacity: 5/Month
Payment Terms: L/C, T/T, Western Union, Paypal
Inquire now
Add To Inquiry Basket

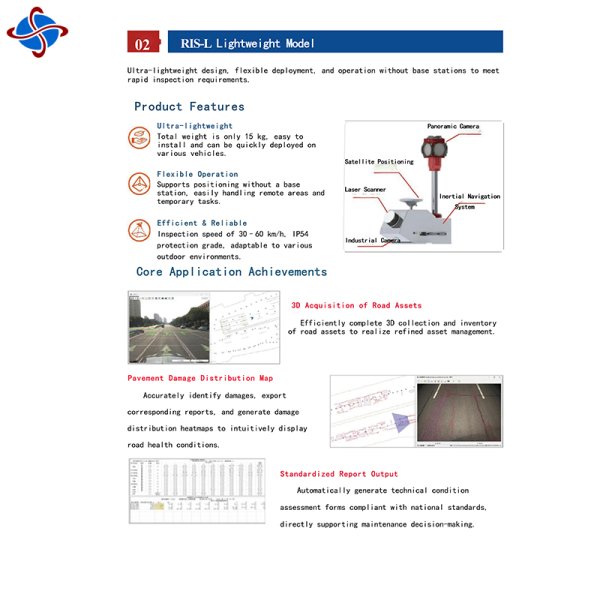

RIS-L Road Reality Capture System for Urban 3D Applications.
RIS-L Road Information Collection System is a comprehensive mobile reality capture solution that panoramic cameras, Satellite Positioning,Laser Scanner, Industrial Camera, and Inertial Navigation System. Designed for mounting on vehicles, trains, or ships, this system captures centimeter-level high-precision point clouds and panoramic imagery data. The integrated intelligent software provides autonomous route optimization, calibration, data processing, and result extraction capabilities.
System Advantages
3D Acquisition of Road Assets
Efficiently complete 3D collection and inventory of road assets to realize refined asset management.
Pavement Damage Distribution Map
Accurately identify damages, export corresponding reports, and generate damage distribution heatmaps to intuitively display road health conditions.
Standardized Report Output
Automatically generate technical condition assessment forms compliant with national standards, directly supporting maintenance decision-making.
Urban Scene Applications
RIS-L system efficiently handles 3D urban scene modeling, road component census, highway and railway retesting, and various infrastructure assessment scenarios.
Features
Ultra-lightweight
Total weight is only 15 kg, easy to install and can be quickly deployed on various vehicles.
Flexible Operation
Supports positioning without a base station, easily handling remote areas and temporary tasks.
Efficient & Reliable
Inspection speed of 30-60 km/h, IP54 protection grade, adaptable to various outdoor environments.
| RIS-L Lightweight Model | |
| Specification Item | Specification Parameter |
| System Specifications | |
| Inspection Speed | 30~60km/h |
| Positioning Accuracy | Better than 5cm |
| Inspection Accuracy | Crack Detection Resolution1mm, Depth Measurement Accuracy5mm |
| Equipment Weight | 15kg |
| Operating Temperature | 0~50℃ |
| Protection Level | IP54 |
| LIDAR | |
| Laser Safety Class | Class 1 (Eye-safe) |
| Ranging Range | 0~120m |
| Point Frequency | Single Echo: 640k points/sec, Dual Echo: 1.28M points/sec |
| Ranging Accuracy | 5mm/1cm |
| Field of View (FOV) | 360° |
| Angular Resolution | 0.18° |
| Scanning Speed | 5Hz, 10Hz, 20Hz |
| Panoramic Camera | |
| Resolution | Mono: 2448×2048, Panoramic: 30MP |
| Shutter Type | Global Shutter |
| Field of View (FOV) | 360° |
| Frame Rate | 30 FPS (JPEG Compressed) |
| Rear-view Camera | |
| Resolution | 5120×5120 (25MP) |
| Shutter Type | Global Shutter |
| Frame Rate | 4 FPS |
| Position & Attitude System | |
| Satellite System | BeiDou & GPS & GLONASS |
| Integrated Navigation Level | MEMS Integrated Navigation |
| Post-processing Positioning Accuracy | Horizontal: 0.010m, Vertical: 0.020m |
| Post-processing Attitude Accuracy | Roll/Pitch0.005°, Heading0.010° |
Software Capabilities
·VsursProcess Data Preprocessing Software is a professional mobile surveying data processing software that supports data parsing from mainstream LiDAR, sonar and image sensors.

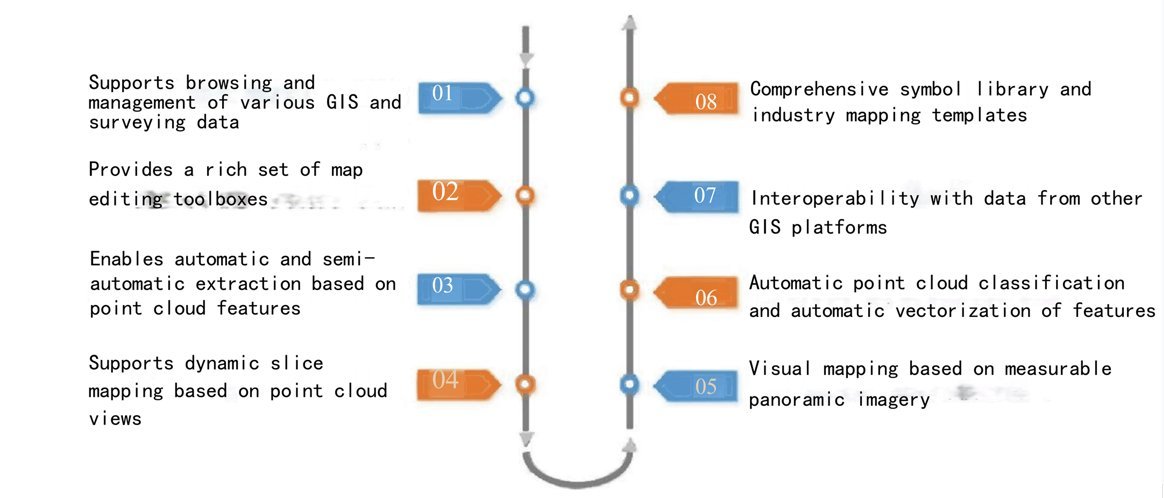

·VsurMap is a professional 3D laser point cloud data mapping software that integrates 2D and 3D integrated geographic information collection, editing, data management and industry applications.
Qingdao Xiushan Supersurs Co., Ltd. established in July 2011, is a high-tech enterprise dedicated to the R&D of multi-sensor intelligent equipment. Recognized as a "Specialized, Refined, and Innovative" enterprise by the city of Qingdao, the company also hosts an Academician and Expert Workstation. It is committed to the development of equipment for the rapid acquisition of 3D geographic information, as well as to the field of 3D geographic data mining. The company's core technology is rooted in the accumulated achievements of close-range 3D measurement techniques. As a pioneer in China's mobile mapping sector, and guided by its corporate philosophy of "Intelligent Innovation," the company has made it its mission to deliver "high-caliber, high-precision, and cutting-edge" products and services. It aims to provide core equipment and engineering software for the rapid acquisition of 2D geographic data to sectors such as natural resources, transportation, marine affairs, and mining; furthermore, it offers 3D laser reality models and comprehensive engineering solutions for initiatives involving Digital Cities, Digital Transportation, Digital Oceans, and Digital Energy.
FAQ
What is the minimum order quantity (MOQ)?
Our MOQ is 1 set for this product is one set.
Can you provide OEM/ODM service?
Yes, we support OEM/ODM services including custom logo, software interface, and packaging design. Please share your requirements.
What is the lead time?
For standard products, lead time is 10-15 working days. For bulk orders or customized solutions, it typically takes negotiation is usually required.
Do you provide training?
Yes. We provide online video tutorials, user manuals, and remote support. On-site training can be arranged upon request.
What is your warranty policy?
We offer a 12-month warranty for all hardware. The warranty covers manufacturing defects but does not cover damage from misuse or unauthorized modifications.
What shipping methods do you accept?
We ship via DHL, FedEx, UPS for express delivery, or by sea/air freight for bulk orders. Shipping cost and time depend on destination.
What are the payment terms?
We accept T/T bank transfer, PayPal, Western Union, and MIC Trade Assurance.
Do you have local distributors or agents?
We have agents within China, and we are currently seeking partners abroad. You are welcome to contact us.
