RIS-H Flagship Road Inspection System
·The RIS-H High-Precision Mobile Road Inspection System is a flagship solution designed for high-end road inspection and digital infrastructure applications. It delivers millimeter-level measurement accuracy, enabling detailed analysis of pavement conditions and supporting refined maintenance decision-making.

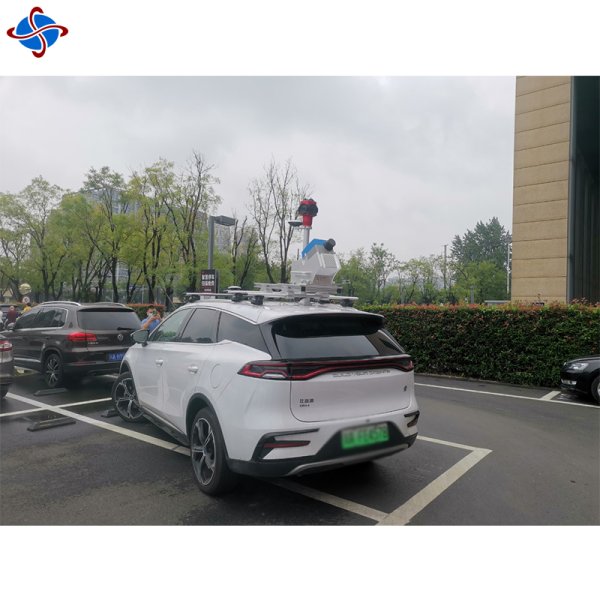

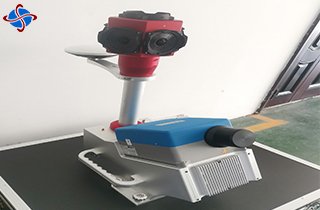

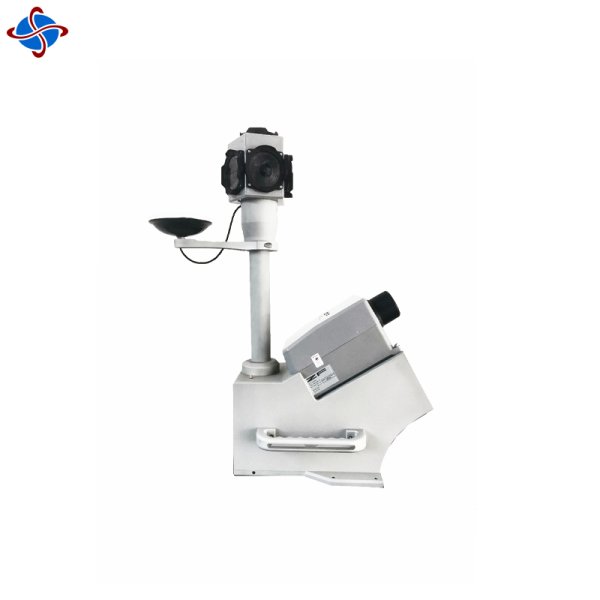

·The system integrates LiDAR, GNSS positioning, panoramic cameras, industrial cameras, and an inertial navigation system （INS）, providing synchronized high-precision data collection. With inspection speeds ranging from 30 to 80 km/h, RIS-H ensures both efficiency and accuracy for large-scale road projects.

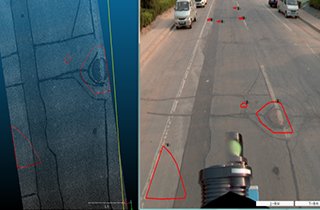

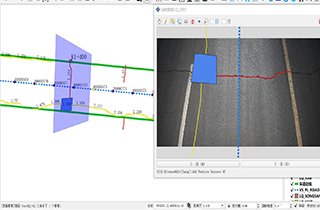

·By combining high-density 3D point cloud data with advanced analysis algorithms, the system supports comprehensive pavement evaluation, including crack detection, rutting analysis, pothole identification, and roughness mapping. It is widely used in highway inspection, smart transportation systems, and digital twin road construction.
High Speed & High Precision
Supports inspection at speeds up to 80 km/h while maintaining high positioning and measurement accuracy.
Millimeter-Level Inspection
Provides depth measurement accuracy up to 1 mm, enabling detection of subtle pavement damage.
All-Round Application
Suitable for highways, urban roads, and complex environments requiring refined data collection.
Infrastructure Measurement
Highway Pavement Inspection, Urban Road Condition Monitoring, Smart Transportation Systems, Digital Twin Road Construction.
Infrastructure Measurement
Highway Pavement Inspection, Urban Road Condition Monitoring, Smart Transportation Systems, Digital Twin Road Construction.

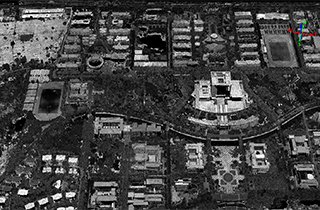

Full 3D Data Acquisition
Full 3D point cloud + image data for comprehensive road condition analysis.
Still searching for your fit? Discover the right hardware for your needs

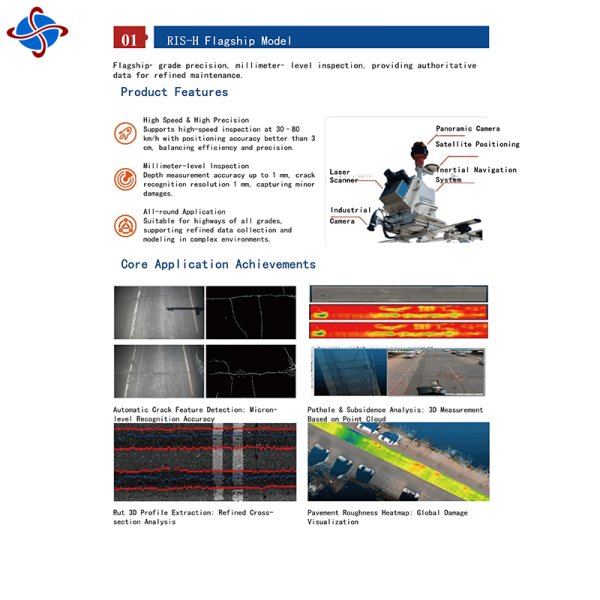

RIS-H Flagship Model | |
Specification Item | Specification Parameter |
System Specifications | |
| Inspection Speed | 30~80km/h |
| Positioning Accuracy | Better than 3cm |
| Inspection Accuracy | Crack Detection Resolution1mm, Depth Measurement Accuracy5mm30~80km/h |
| Equipment Weight | 30kg |
| Operating Temperature | -10~50 |
| Protection Level | IP54 |
LIDAR | |
| Laser Safety Class | Class 1 （Eye-safe） |
| Ranging Range | 0.3~182m |
| Point Frequency | Max.1.094 million pixel/sec |
| Ranging Accuracy | Better than1mm |
| Ranging Resolution | 0.1mm |
| Field of View （FOV） | 360° |
| Angular Resolution | 0.0088° |
| Scanning Speed | 50~267Hz |
Panoramic Camera | |
| Resolution | Mono: 2448×2048, Panoramic: 30MP |
| Shutter Type | Global Shutter |
| Field of View （FOV） | 360° |
| Frame Rate | 30 FPS （JPEG Compressed） |
Rear-view Camera | |
| Resolution | 5120×5120 （25MP） |
| Shutter Type | Global Shutter |
| Frame Rate | 4 FPS |
Position & Attitude System | |
| Satellite System | BeiDou & GPS & GLONASS |
| Integrated Navigation Level | Tactical-grade Fiber Optic Integrated Navigation |
| Post-processing Positioning Accuracy | Horizontal: 0.010m, Vertical: 0.020m |
| Post-processing Attitude Accuracy | Roll/Pitch: 0.003°, Heading: 0.004° |
Software Capabilities
·VsursProcess Data Preprocessing Software is a professional mobile surveying data processing software that supports data parsing from mainstream LiDAR, sonar and image sensors.
·VsurMap is a professional 3D laser point cloud data mapping software that integrates 2D and 3D integrated geographic information collection, editing, data management and industry applications.
Qingdao Xiushan Supersurs Co., Ltd. established in July 2011, is a high-tech enterprise dedicated to the R&D of multi-sensor intelligent equipment. Recognized as a "Specialized, Refined, and Innovative" enterprise by the city of Qingdao, the company also hosts an Academician and Expert Workstation. It is committed to the development of equipment for the rapid acquisition of 3D geographic information, as well as to the field of 3D geographic data mining. The company's core technology is rooted in the accumulated achievements of close-range 3D measurement techniques. As a pioneer in China's mobile mapping sector, and guided by its corporate philosophy of "Intelligent Innovation," the company has made it its mission to deliver "high-caliber, high-precision, and cutting-edge" products and services. It aims to provide core equipment and engineering software for the rapid acquisition of 2D geographic data to sectors such as natural resources, transportation, marine affairs, and mining; furthermore, it offers 3D laser reality models and comprehensive engineering solutions for initiatives involving Digital Cities, Digital Transportation, Digital Oceans, and Digital Energy.
FAQ
What is the minimum order quantity （MOQ）?
Our MOQ is 1 set for this product is one set.
Can you provide OEM/ODM service?
Yes, we support OEM/ODM services including custom logo, software interface, and packaging design. Please share your requirements.
What is the lead time?
For standard products, lead time is 10-15 working days. For bulk orders or customized solutions, it typically takes negotiation is usually required.
Do you provide training?
Yes. We provide online video tutorials, user manuals, and remote support. On-site training can be arranged upon request.
What is your warranty policy?
We offer a 12-month warranty for all hardware. The warranty covers manufacturing defects but does not cover damage from misuse or unauthorized modifications.
What shipping methods do you accept?
We ship via DHL, FedEx, UPS for express delivery, or by sea/air freight for bulk orders. Shipping cost and time depend on destination.
What are the payment terms?
We accept T/T bank transfer, PayPal, Western Union, and MIC Trade Assurance.
Do you have local distributors or agents?
We have agents within China, and we are currently seeking partners abroad. You are welcome to contact us.
