Ris-H Lidar Road Mapping Mobile Lidar Scanne Rwith Mobile Mapping System 3D Lidar
US$430,000.00
1 Set (MOQ)
Port: Qingdao, China
Production Capacity: 1/Month
Payment Terms: L/C, T/T, Western Union, Paypal
Inquire now
Add To Inquiry Basket
RIS-H Road Reality Capture System for Urban 3D Applications.

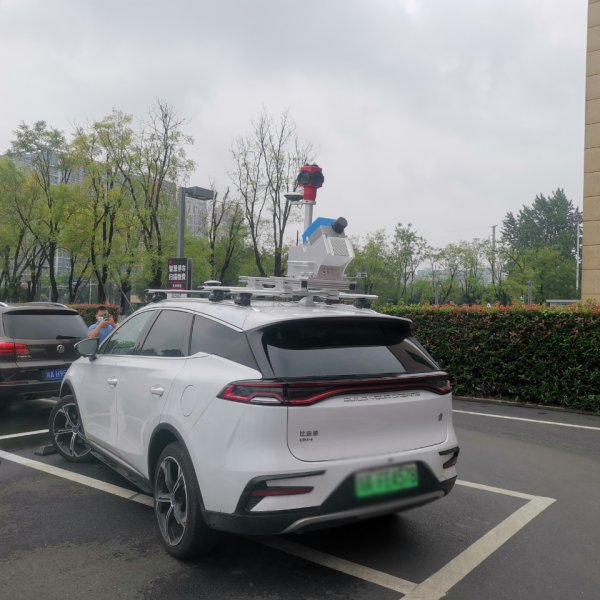

RIS-H Road Information Collection System is a comprehensive mobile reality capture solution that Panoramic Camera, Satellite Positioning, Inertial Navigation System, Laser Scanner, and Industrial Camera. Designed for mounting on vehicles, trains, or ships, this system captures centimeter-level high-precision point clouds and panoramic imagery data. The integrated intelligent software provides autonomous route optimization, calibration, data processing, and result extraction capabilities.
System Advantages
·Precise Positioning: Flagship-grade precision, millimeter-level inspection, providing authoritative data for refined maintenance.

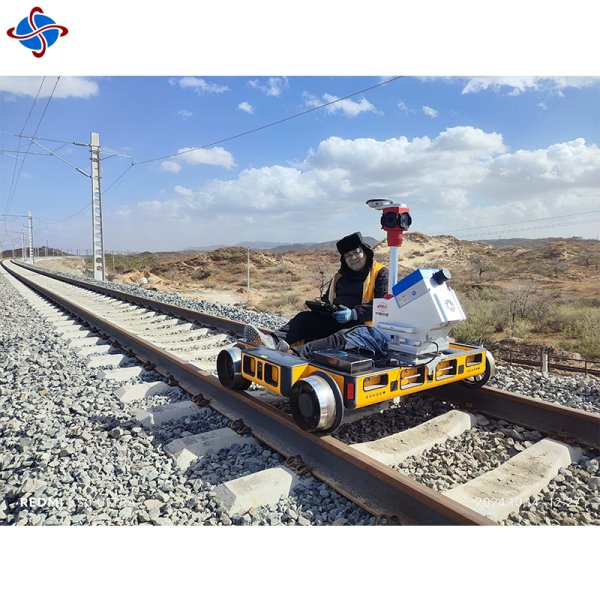

·Versatile Platform: Supports multiple antennas and complies with various traffic regulations. Compatible with mechanical, optical, and railway odometers for diverse applications including vehicle-mounted and rail-based deployments.
·Efficient Panoramic Imaging: Surveying-grade panoramic camera ensures smooth, high-quality imagery for comfortable viewing experience and enhanced workflow efficiency.

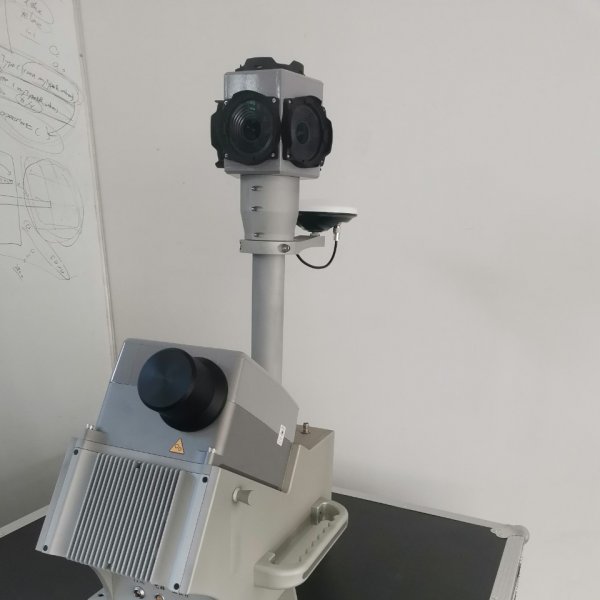

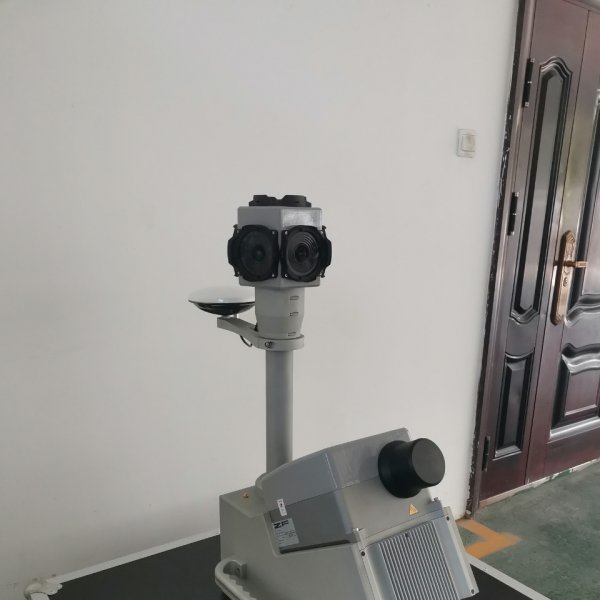

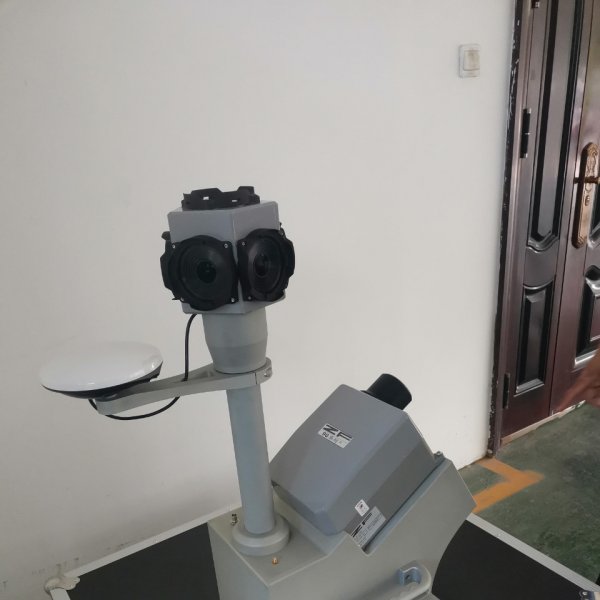

·Compact Integration: Highly integrated host unit combines Panoramic Camera, Satellite Positioning, Inertial Navigation System, Laser Scanner, and Industrial Camera, compact design suitable for various vehicle types.
Urban Scene Applications
RIS-H system efficiently handles 3D urban scene modeling, road component census, highway and railway retesting, and various infrastructure assessment scenarios.

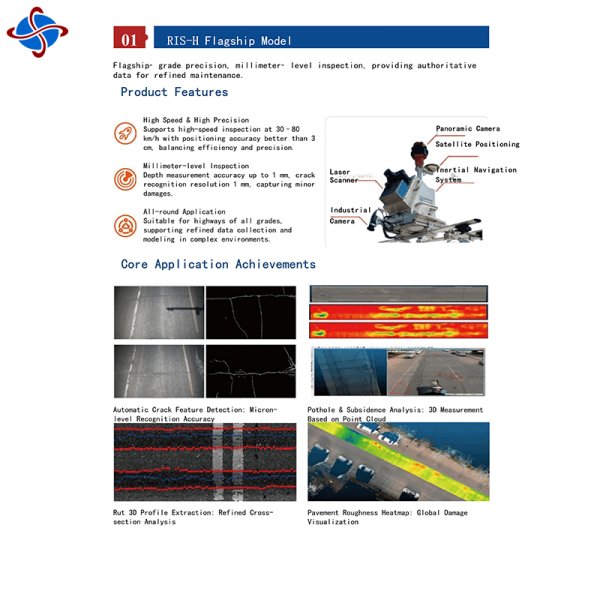

Features
High Speed, High PrecisionIt has a waterp
Supports high-speed inspection at 30-80 km/h, with positioning accuracy better than 3 cm-balancing both efficiency and precision.
Millimeter-level Detection
Depth measurement accuracy reaches 1 mm, and crack detection resolution is 1 mm, enabling the capture of minute defects.
All-in-One App
It is suitable for roads of all classifications, supporting high-precision data acquisition and modeling in complex environments.. Moreover, we can provide various styles to meet your needs.
| RIS-H Flagship Model | |
| Specification Item | Specification Parameter |
| Specification Parameter | |
| Inspection Speed | 30~80km/h |
| Positioning Accuracy | Better than 3cm |
| Inspection Accuracy | Crack Detection Resolution1mm,Depth Measurement Accuracy1mm |
| Equipment Weight | 30kg |
| Operating Temperature | -10~50 |
| Protection Level | IP54 |
| LIDAR | |
| Laser Safety Class | Class 1 (Eye-safe) |
| Ranging Range | Ranging Range |
| Point Frequency | Max.1.094 million pixel/sec |
| Ranging Accuracy | Better than1mm |
| Ranging Resolution | 0.1mm |
| Field of View (FOV) | 360° |
| Angular Resolution | 0.0088° |
| Scanning Speed | 50~267Hz |
| Panoramic Camera | |
| Resolution | Mono: 2448×2048, Panoramic: 30MP |
| Shutter Type | Global Shutter |
| Field of View (FOV) | 360° |
| Frame Rate | 30 FPS (JPEG Compressed) |
| Rear-view Camera | |
| Resolution | 5120×5120 (25MP) |
| Shutter Type | Global Shutter |
| Frame Rate | 4 FPS |
| Position & Attitude System | |
| Satellite System | BeiDou & GPS & GLONASS |
| Integrated Navigation Level | Tactical-grade Fiber Optic Integrated Navigation |
| Post-processing Positioning Accuracy | Horizontal: 0.010m, Vertical: 0.020m |
| Post-processing Attitude Accuracy | Roll/Pitch: 0.003°, Heading: 0.004° |

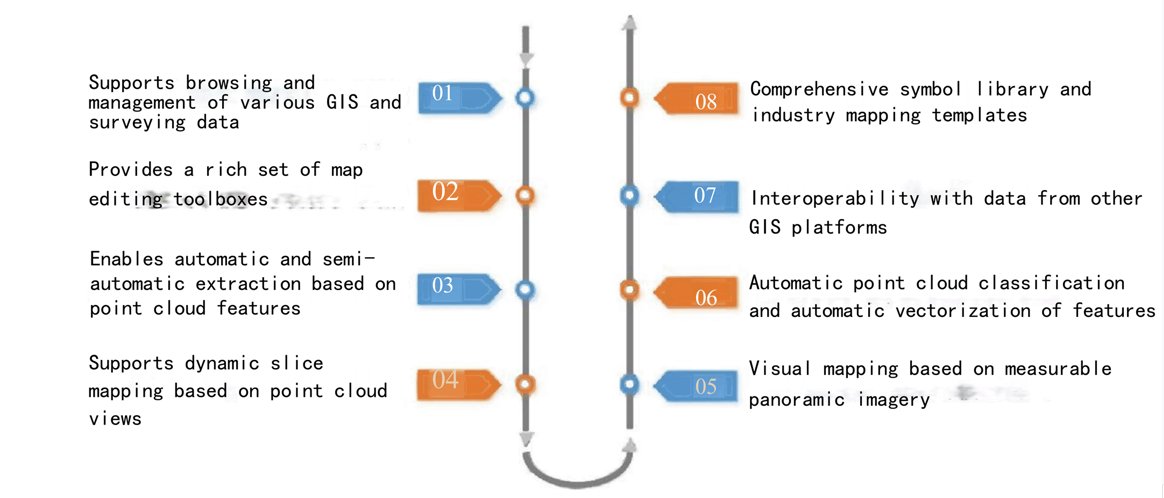

Software Capabilities
POS Software: Outputs position, speed, and attitude information

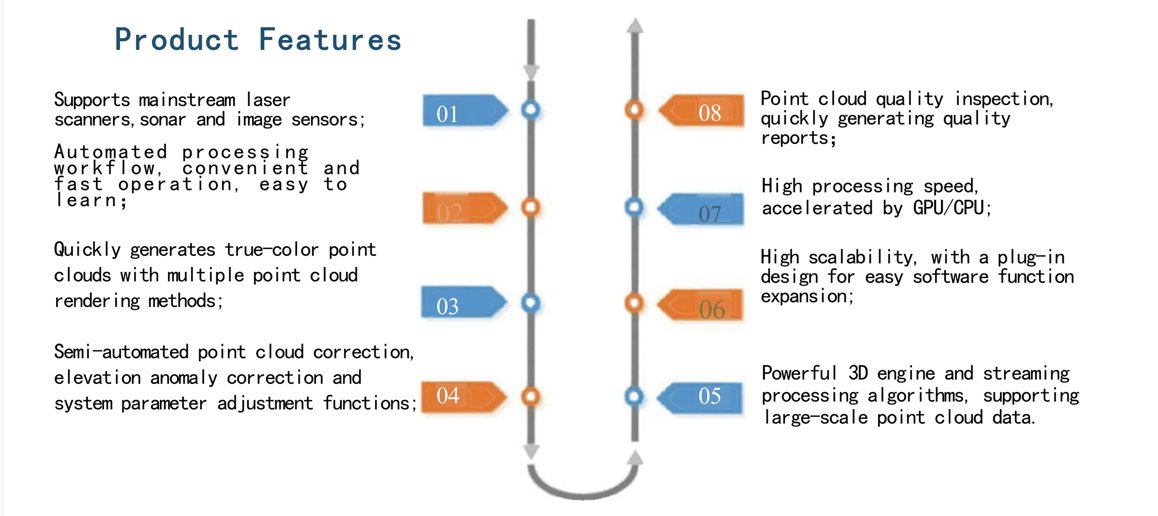

Point Cloud Software: Outputs data in LAS format and custom TXT format
